flip-flops are limited because they can store only one bit.
a register is an extension of a flip-flop that can store multiple bits.
4-bit register (Reg-4)
this register uses D flip-flops
all the flip-flops share a common CLK and CLR signal
>clock gating
when LD = 0, the flip-flop C inputs are held at 1. no positive clock edge -> flip flops keep their current values
when LD = 1, the CLK input passes through the OR gate, can receive positive clock edge -> load a new parrellel value from the D3 ~ D0 inputs
- clock gating -> timing problem( delayed a little bit by the OR gate )
a better parallel load
다른 종류 register 도 있음
shift registers
>shift directions
Shift Right의 최상위 비트는 Q0이고, Shift Left의 최상위 비트는 Q3이다. shift direction을 바꾸는 방법은 최상위 비트 (msb)를 결정만 하면 된다
shift registers with parallel load
LD = 0 이면 위의 회로에서 shift right가 작동되고,
LD = 1 이면 D0~D3 의 new parallel value 가 CLK가 rising edge인 상태에서 load 된다
Receiving serial data : receive serial data using a shift register
Sending data serially : send data serially with a shift register
universal shift register
clear : control to clear the register to 0
clock : input to synchronize the operations
shift-right : control to enable the shift right operation
shift-left : control to enable the shift left operation
parallel-load : control to enable a parallel transfer with the n input lines
n parallel input llines
unchanged
example : serial addition
+ carry out을 JK FF로 저장하는 경우
Counters (숫자를 세는 회로)
the output value increases by one on each clock cycle.
after the largest value the output back to 0.
Ripple counter
A0 : complement
A1 : A0가 1 -> 0 으로 complement (A0 에 대해 negative edge일때 complement)
A2 : A1가 1 -> 0 으로 complement (A1 에 대해 negative edge일때 complement)
A3 : A2가 1 -> 0 으로 complement (A2 에 대해 negative edge일때 complement)
CLK가 1이 되는 rising edge에서 T에 1이 들어옴
->A0는 원래값에서 complement됨
A0가 1에서 0이 되는 순간,
-> T에 1이 들어와 A1이 complement됨
Slightly fancier counter
two-bit counter (00,01,10,11) with D FF
single input x.
when x = 0 , the counter value should increment
when x = 1, the counter value should decrement
state diagram, -> state table
two-bit counter (00,01,10,11) with JK FF
JK FF의 여기표 이용해서 state table 채우기
unused states
1 way : fill in don't cares

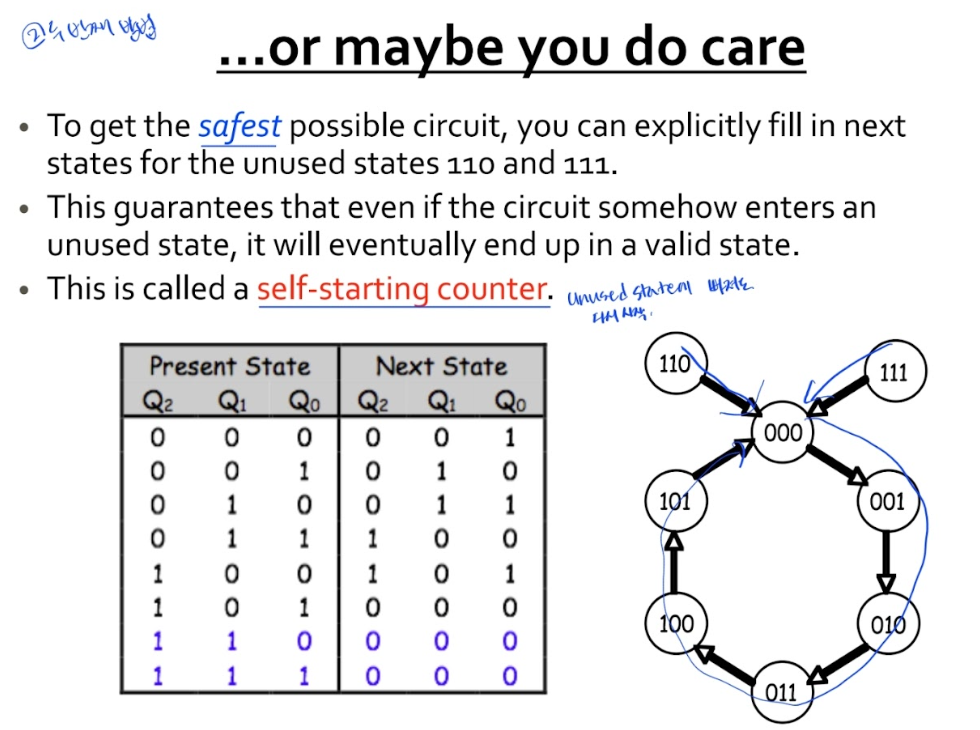

2 way : self starting counter
more complex counters
a restricted 4 bit counter
starts at some value : when CO = 0, Forces the next state to be loaded from D3-D0
ends at some value : NAND gate forces to load
